• Wheels, 20" x 9" (50.8 cm x 22.9 cm) Black gloss painted aluminum
• Tires, 275/60R20 all-season, blackwall
• Wheel, 17" x 8" (43.2 cm x 20.3 cm) full-size, steel spare
• Tire, spare 255/80R17SL all-season, blackwall (Included and only available with 20" or 22" wheels and tires.)
• Tire carrier lock keyed cylinder lock that utilizes same key as ignition and door
• Bumper, front, body-color lower (Front bumper color will be high gloss black.)
• Bumper, rear body-color with corner steps
• CornerStep, rear bumper
• Grille (Body-color surround with high gloss Black mesh and inserts.)
• Headlamps, LED reflector with incandescent turn signals and LED signature Daytime Running Lamps
• Fog lamps, LED
• Taillamps, LED tail and stop light with incandescent reverse light
• Mirrors, outside heated power-adjustable
• Glass, deep-tinted
• Lamps, cargo area, cab mounted integrated with center high mount stop lamp, with switch in bank on left side of steering wheel.
• LED Cargo Area Lighting located in cargo box activated with switch on center switch bank or key fob
• Tailgate, standard
• Tailgate, gate function manual with EZ Lift includes power lock and release, includes hitch area light
• Tailgate and bed rail protection caps, top
• Door handles, body-color

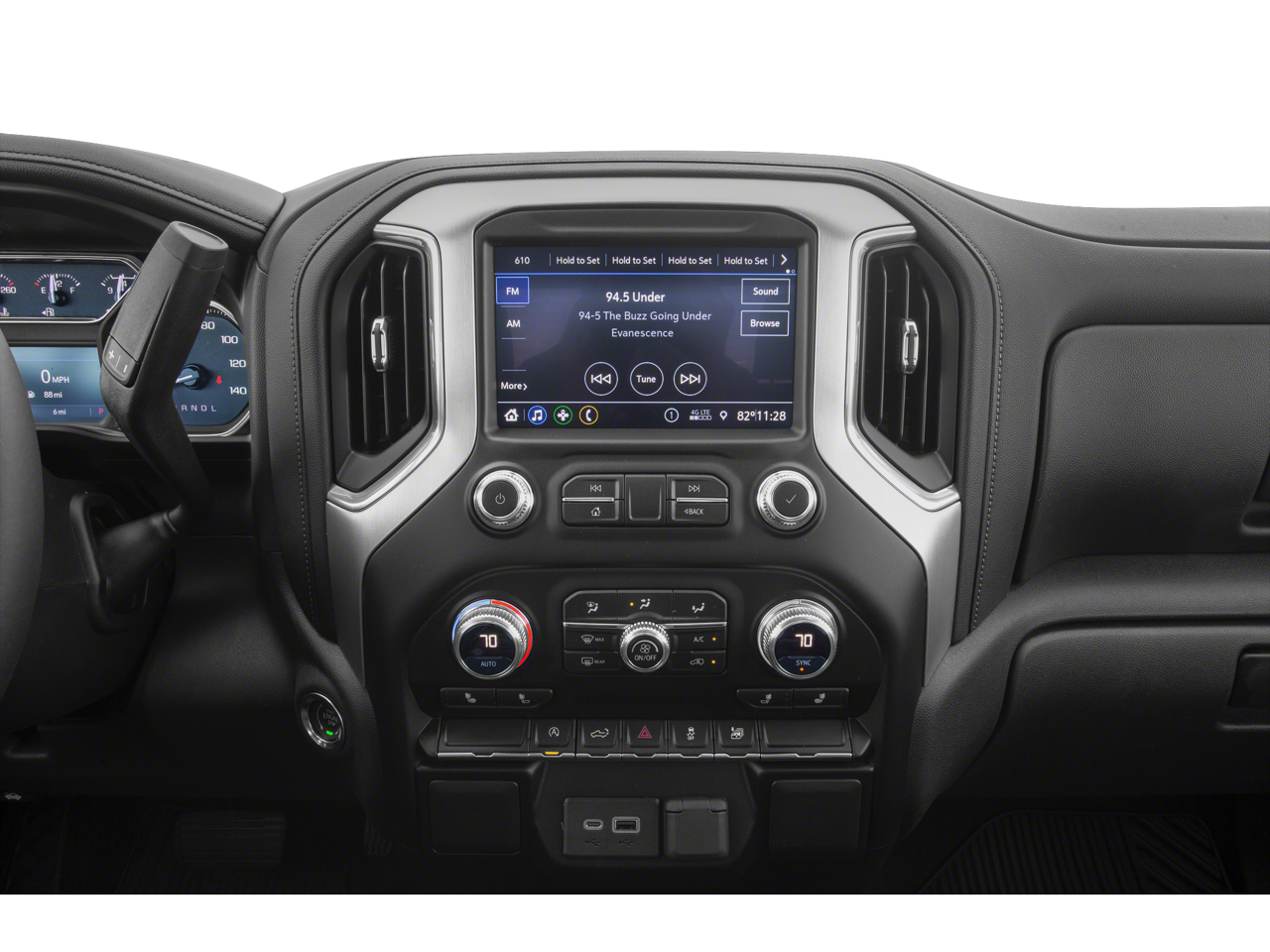

• Audio system, GMC Infotainment System with 8" diagonal color touch-screen, AM/FM stereo with seek-and-scan and digital clock, includes Bluetooth® streaming audio for music and select phones; featuring Android Auto and Apple CarPlay capability for compatible phones
• Audio system feature, 6-speaker system
• Bluetooth® for phone connectivity to vehicle infotainment system
• Steering wheel audio controls
• 4G LTE Wi-Fi Hotspot capable (Terms and limitations apply. See onstar.com or dealer for details.)

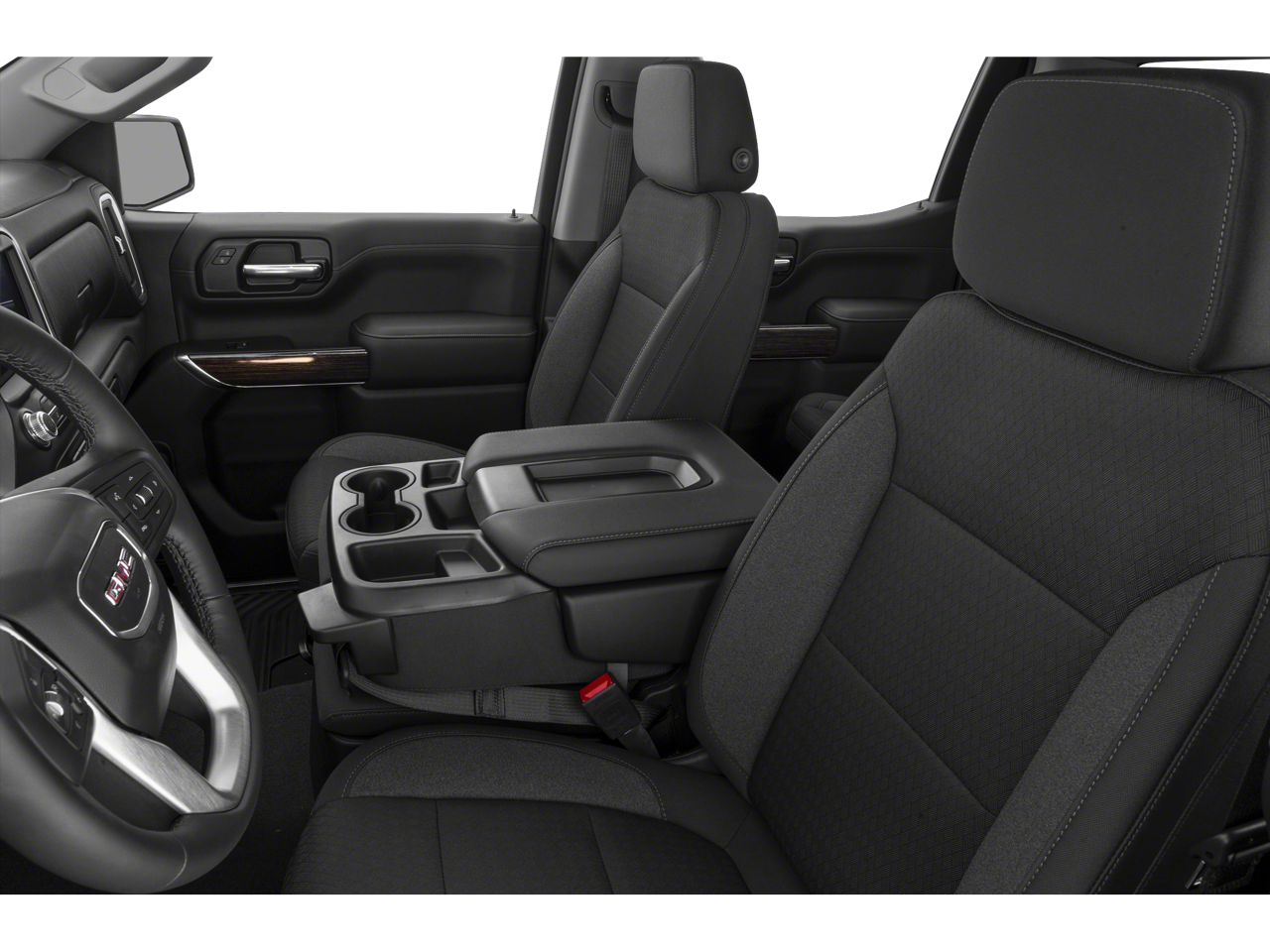

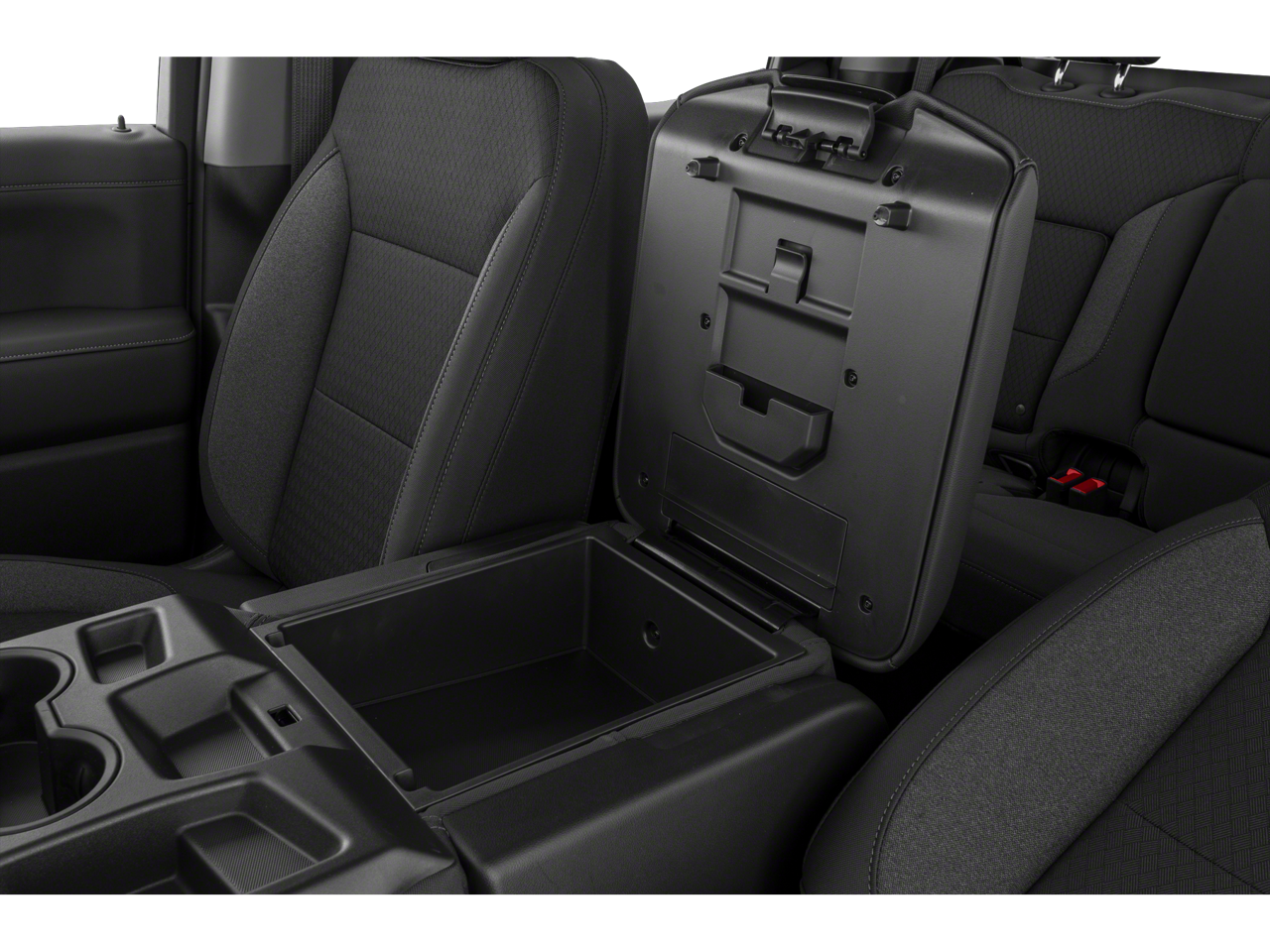

• Seats, front 40/20/40 split-bench with covered armrest storage and under-seat storage (lockable) (Not available with (PCU) Elevation Convenience Package with Bucket Seats.)
• Seat adjuster, driver 4-way manual
• Seat adjuster, passenger 4-way manual

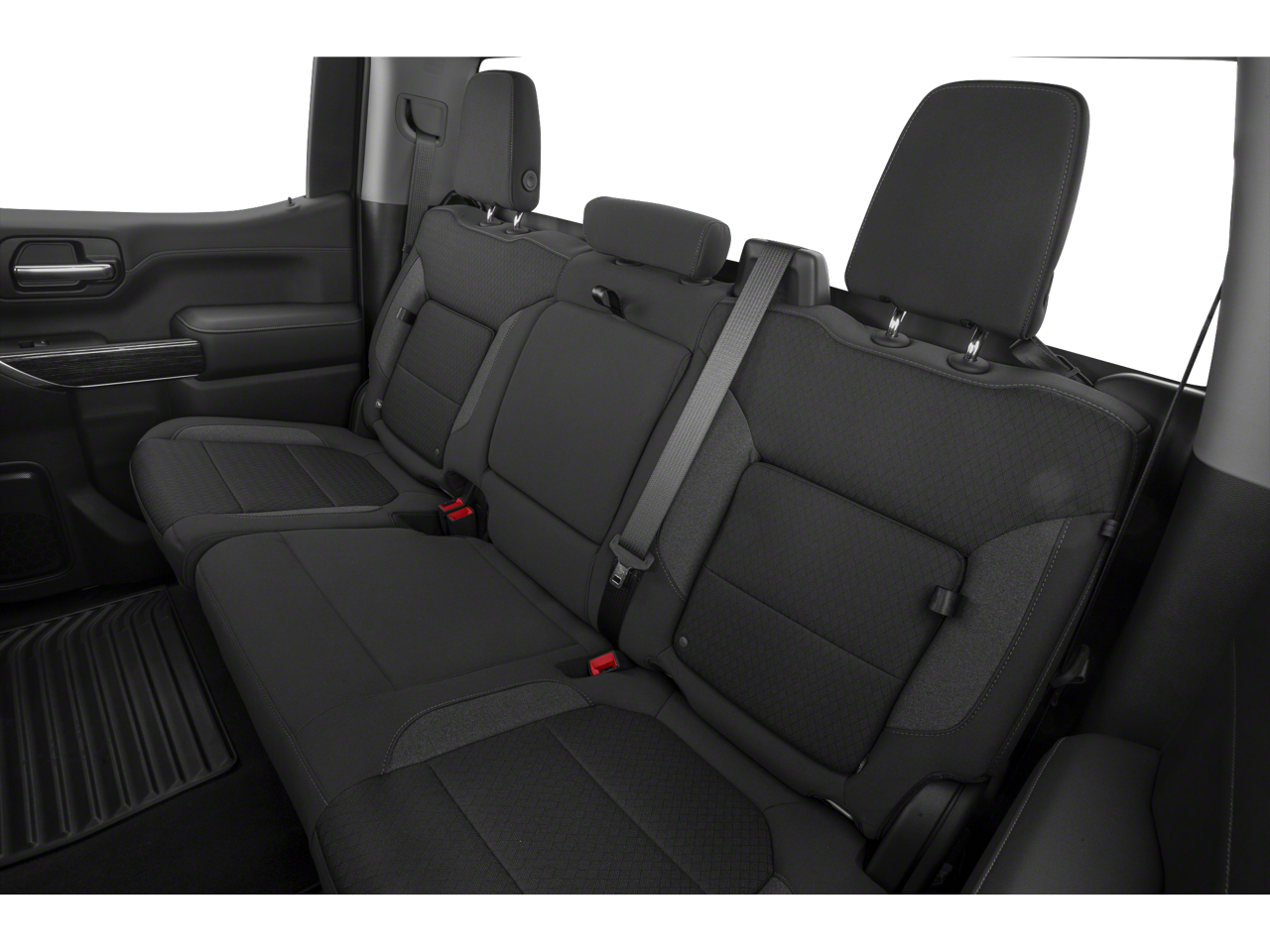

• Seat, rear 60/40 folding bench (folds up), 3-passenger (includes child seat top tether anchor)
• Floor covering, color-keyed carpeting
• Floor mats, rubberized-vinyl front (Deleted when (RIA) All-weather floor liner, LPO is ordered.)
• Floor mats, rubberized-vinyl rear (Deleted when (RIA) All-weather floor liner, LPO is ordered.)
• Steering column, Tilt-Wheel, manual with wheel locking security feature
• Steering wheel, leather-wrapped
• Driver Information Center, 4.2" diagonal color display includes driver personalization
• Compass, located in instrument cluster
• Exterior Temperature Display, located in radio display
• Brake lining wear indicator
• Windows, power front, drivers express up/down
• Window, power front, passenger express down
• Windows, power rear, express down
• Door locks, power
• Remote vehicle starter system
• Keyless Open and Start
• Cruise control, steering wheel-mounted
• Theft-deterrent system, unauthorized entry
• Steering column, lock control, electrical
• USB ports, 2 (first row) located on instrument panel
• Power outlet, front auxiliary, 12-volt
• USB ports, dual, charge-only (2nd row)
• Power outlet, rear auxiliary, 12-volt
• Air conditioning, single-zone manual, semi-automatic
• Air vents, rear
• Defogger, rear-window electric
• Mirror, inside rearview, manual tilt
• Assist handles front A-pillar mounted for driver and passenger, rear B-pillar mounted
• GMC Connected Access capable (Subject to terms. See onstar.com or dealer for details.)

• StabiliTrak, stability control system with Proactive Roll Avoidance and traction control, includes electronic trailer sway control and hill start assist
• Daytime Running Lamps LED signature lighting
• Airbags, Dual-stage frontal airbags for driver and front outboard passenger; Seat-mounted side-impact airbags for driver and front outboard passenger; Head-curtain airbags for front and rear outboard seating positions; Includes front outboard Passenger Sensing System for frontal outboard passenger airbag (Always use seat belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• OnStar and GMC connected services capable (Terms and limitations apply. See onstar.com or dealer for details.)
• Rear Vision Camera
• Teen Driver mode a configurable feature that lets you activate customizable vehicle settings associated with a key fob, to help encourage safe driving behavior. It can limit certain available vehicle features, and it prevents certain safety systems from being turned off. An in-vehicle report card gives you information on driving habits and helps you to continue to coach your new driver
• Tire Pressure Monitoring System with Tire Fill Alert (does not apply to spare tire)
• Rear Seat Reminder

ELEVATION CONVENIENCE PACKAGE

• includes (CJ2) dual climate control
• (A2X) 10-way power driver seat including power lumbar
• (KA1) heated driver and passenger seats
• (KI3) heated steering wheel
• (N37) manual tilt/telescoping steering column and (B1J) rear wheelhouse liners Crew Cab models include (R7O) Cloth Rear Seat Storage Package.)

ELEVATION PREFERRED EQUIPMENT GROUP

• includes standard equipment

BED LINER, SPRAY-ON

• Pickup bedliner with GMC logo

TIRES, 275/60R20SL ALL-TERRAIN, BLACKWALL

• (Includes (QAQ) spare tire.)

• Elevation Convenience Package: Manual Tilt-Wheel and Telescoping Steering Column; Heated Steering Wheel; 10-Way Power Driver Seat Adjuster with Lumbar; Dual-Zone Automatic Climate Control; Heated Driver and Front Outboard Passenger Seating; Rear Wheelhouse Liners; Cloth Rear Seat with Storage Package
• X31 Off-Road Package: 275/60R20SL AT BW Tires; 2-Speed Transfer Case; Hill Descent Control; Off-Road Suspension; Dual Exhaust with Premium Tips; Heavy-Duty Rear Locking Differential; Skid Plates; High-Capacity Air Filter; X31 Hard Badge
• Preferred Equipment Group 3SB: LED Cargo Area Lighting; Remote Vehicle Starter System; Electric Rear-Window Defogger; Theft Deterrent System (unauthorized Entry); Body-Color Surround Grille; Compass; Electrical Lock Control Steering Column; Front 40/20/40 Split-Bench Seat; Steering Wheel Audio Controls; Single-Zone Manual/semi-Automatic Air Conditioning; GMC Connected Access Capable; Color-Keyed Carpeting Floor Covering; OnStar and GMC Connected Services Capable; Power Front Windows with Passenger Express Down; Front Rubberized-Vinyl Floor Mats; Rear Rubberized-Vinyl Floor Mats; Deep-Tinted Glass; GMC Infotainment Audio System; Power Rear Windows with Express Down; Manual Tilt Wheel Steering Column; Single Speed Transfer Case; Power Front Windows with Driver Express Up/down; Rear Dual USB Charging-Only Ports; Front Frame-Mounted Black Recovery Hooks; Keyless Open and Start; 4G LTE Wi-Fi Hotspot Capable; 12-Volt Rear Auxiliary Power Outlet; Power Door Locks
• Spray-On Pickup Bed Liner with GMC Logo
• Heavy-Duty Rear Locking Differential
• Trailering Package
• Integrated Trailer Brake Controller
• 275/60R20SL AT BW Tires
• Onyx Black
• Apple CarPlay/Android Auto smart device mirroring
• 4G LTE Wi-Fi Hotspot capable mobile hotspot internet access
• Rear mounted camera
• Brake assist system
• Cruise control with steering wheel mounted controls
• Keyfob remote start
• Heated steering wheel
• Heated driver and front passenger seats
• Primary monitor touchscreen
• AutoTrac part and full-time 4WD

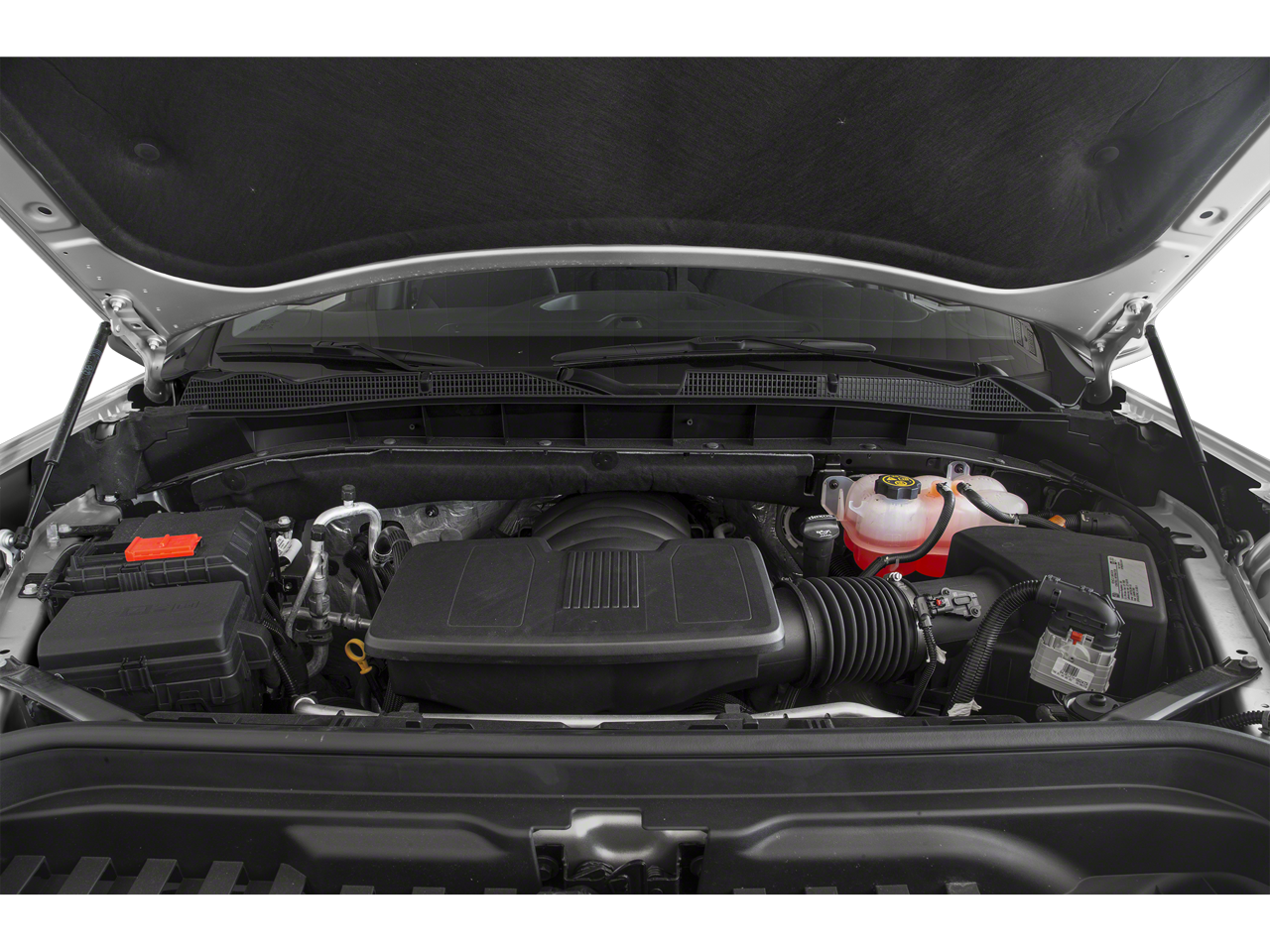

• EcoTec3 5.3L V-8 gasoline direct injection
• variable valve control
• regular unleaded
• engine with cylinder deactivation and 355HP
• EcoTec3 5.3L V-8
• Teen Driver restricted driving mode/alerts
• Smart key with hands-free access and push button start
• Push-button
• Bluetooth® wireless audio streaming
• Hitch Guidance vehicle to trailer hitching assist
• Dual-zone front climate control
• Immobilizer
• Bluetooth® handsfree wireless device connectivity
• Trailer brake controller
• Trailer Sway Control (TSC) trailer sway control
• Trailering Assist Guidelines vehicle and trailer reverse assist with visual graphic guidance only
• GMC Infotainment System external memory control
• Pandora internet radio capability
• StabiliTrak w/Proactive Roll Avoidance electronic stability control system with anti-roll
• Hill Descent Control (HDC)
• Hill Start Assist (HSA)
• Rear seat check warning
• LED daytime running lights
• LED brake lights
• LED front fog lights
• Leather and metal-look steering wheel
• EZ Lift
• EZ Lower
• Manual rear child safety door locks
• Heated driver and passenger side door mirrors
• Manual tilting steering wheel
• Manual telescopic steering wheel
• Dynamic Fuel Management auto stop-start engine
• Capless fuel filler
• 20 x 9-inch front and rear black aluminum wheels
• P275/60SR20 AT BSW front and rear tires
• Cloth front seat upholstery
• 6 airbags
• Driver front impact airbag
• Seat mounted side impact driver airbag
• Curtain first and second-row overhead airbags
• Passenger front impact airbag
• Seat mounted side impact front passenger airbag

• Mileage
• Fuel Economy Est-Combined (MPG): 20
• EPA Fuel Economy Est - City (MPG): 19
• EPA Fuel Economy Est - Hwy (MPG): 22
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 730
• Maximum Alternator Capacity (amps): 220
• Maximum Alternator Watts: - TBD -
• Cooling System
• Total Cooling System Capacity (qts): - TBD -
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 3800
• Gross Axle Wt Rating - Rear (lbs): 3800
• Curb Weight - Front (lbs): 2849
• Curb Weight - Rear (lbs): 1986
• Gross Vehicle Weight Rating Cap (lbs): 7000
• Gross Combined Wt Rating (lbs): 12000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 6600
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 660
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 6600
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 1650
• Maximum Trailering Capacity (lbs): 11100
• Suspension
• Suspension Type - Front: Independent
• Suspension Type - Rear: Solid Axle
• Spring Capacity - Front (lbs): 3800
• Spring Capacity - Rear (lbs): 3850
• Axle Type - Front: - TBD -
• Axle Type - Rear: - TBD -
• Axle Capacity - Front (lbs): 3800
• Axle Capacity - Rear (lbs): 3800
• Axle Ratio (:1) - Front: 3.42
• Axle Ratio (:1) - Rear: 3.42
• Shock Absorber Diameter - Front (mm): 50
• Shock Absorber Diameter - Rear (mm): 50
• Stabilizer Bar Diameter - Front (in): 1.30
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.5 x 1.18
• Rear Brake Rotor Diam x Thickness (in): 13.6 x 0.79
• Tires
• Front Tire Order Code: QAE
• Front Tire Order Code: QAB
• Rear Tire Order Code: QAE
• Rear Tire Order Code: QAB
• Spare Tire Order Code: QAQ
• Front Tire Size: 275/60R20SL
• Front Tire Size: 275/60R20
• Rear Tire Size: 275/60R20SL
• Rear Tire Size: 275/60R20
• Spare Tire Size: 255/80R17SL
• Front Tire Capacity (lbs): - TBD -
• Rear Tire Capacity (lbs): - TBD -
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 20 x 9.0
• Rear Wheel Size (in): 20 x 9.0
• Spare Wheel Size (in): 17 x - TBD -
• Front Wheel Material: Aluminum
• Rear Wheel Material: Aluminum
• Spare Wheel Material: Steel
• Steering
• Steering Type: Electric Rack & Pinion
• Steering Ratio (:1), On Center: - TBD -
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 46.9
• Turning Diameter - Curb to Curb (ft): 46.3
• Turning Diameter - Wall to Wall (ft): - TBD -
• Frame
• Frame Type: Hydroformed
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 24
• Fuel Tank Location: - TBD -
• Exterior Dimensions
• Wheelbase (in): 147.43
• Length, Overall (in): 231.72
• Width, Max w/o mirrors (in): 81.24
• Height, Overall (in): 75.51
• Overhang, Front (in): - TBD -
• Overhang, Rear w/o bumper (in): - TBD -
• Front Bumper to Back of Cab (in): - TBD -
• Cab to Axle (in): - TBD -
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): - TBD -
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): 8.09
• Ground Clearance, Rear (in): 8.09
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 69.92
• Cargo Box Width @ Top, Rear (in): - TBD -
• Cargo Box Width @ Floor (in): 71.4
• Cargo Box Width @ Wheelhousings (in): 50.63
• Cargo Box (Area) Height (in): 22.4
• Tailgate Width (in): - TBD -
• Cargo Volume (ft³): 62.9
• Ext'd Cab Cargo Volume (ft³): - TBD -
• Interior Dimensions
• Passenger Capacity: 6
• Front Head Room (in): 43.03
• Front Leg Room (in): 44.53
• Front Shoulder Room (in): 66.02
• Front Hip Room (in): 61.18
• Second Head Room (in): 40.12
• Second Leg Room (in): 43.4
• Second Shoulder Room (in): 65.16
• Second Hip Room (in): 60.24
• Summary

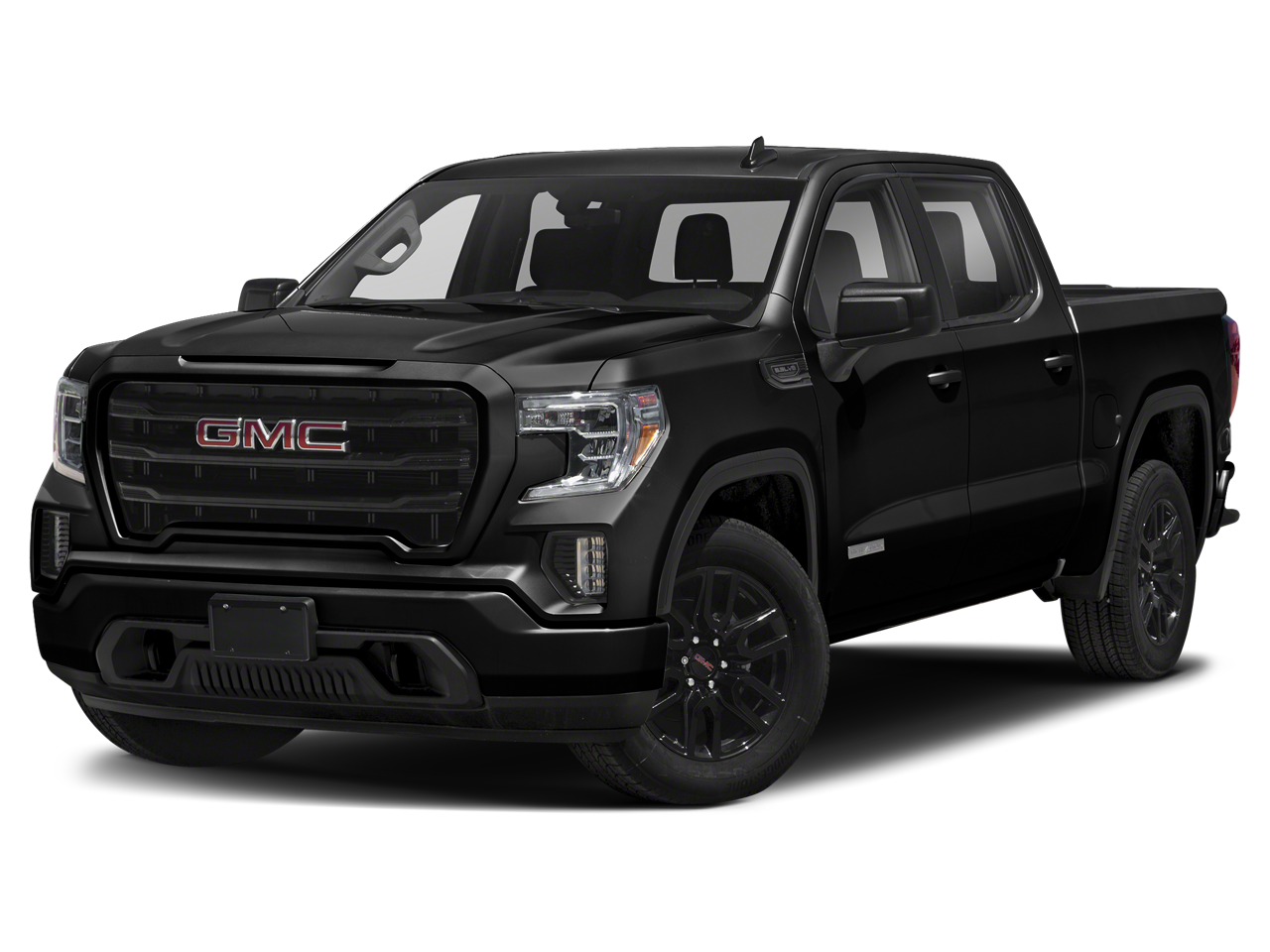

• Vehicle Name: GMC Sierra 1500
• Body Style: Crew Cab Pickup
• Body Code: E63
• Emissions
• EPA Greenhouse Gas Score: - TBD -
• Tons/yr of CO2 Emissions @ 15K mi/year: 8.9
