• Electric shift-on-the-fly transfer case -inc: manual-locking front hubs, instrument panel auto rotary control
• 4-wheel drive
• 72 amp/hr (650 CCA) battery
• 157-amp HD alternator
• Trailer tow pkg -inc: 7-wire harness w/relays, 7/4 pin combination connector
• 12.5K trailer hitch receiver -inc: 2" hitch
• Trailer brake controller *Compatible w/select electric over hydraulic brakes*
• 6-3/4' pickup box -inc: (4) tie-down hooks, partitionable & stackable storage
• (2) front tow hooks
• Mono-beam front axle w/coil spring suspension
• HD gas shock absorbers
• Front stabilizer bar
• Pwr steering w/steering damper
• Pwr 4-wheel disc brakes w/vacuum boost
• 2-ton mechanical jack

• (5) LT275/65R18E all-season BSW tires

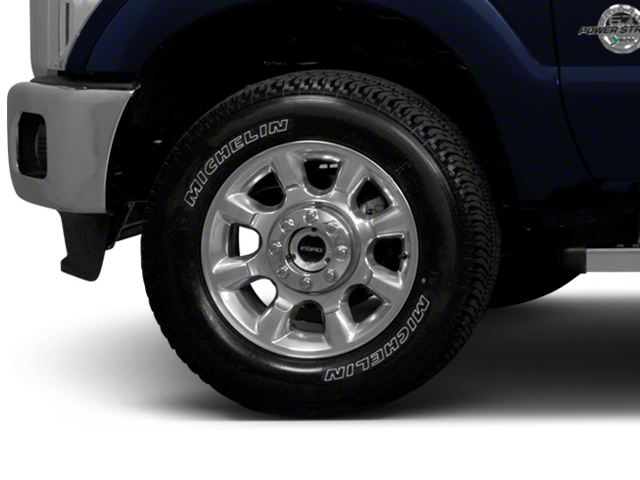

• 18" 6-spoke bright machined cast aluminum wheels -inc: King Ranch bright hub covers & center ornaments
• Full-size spare tire w/lock & carrier
• Accent color front bumper

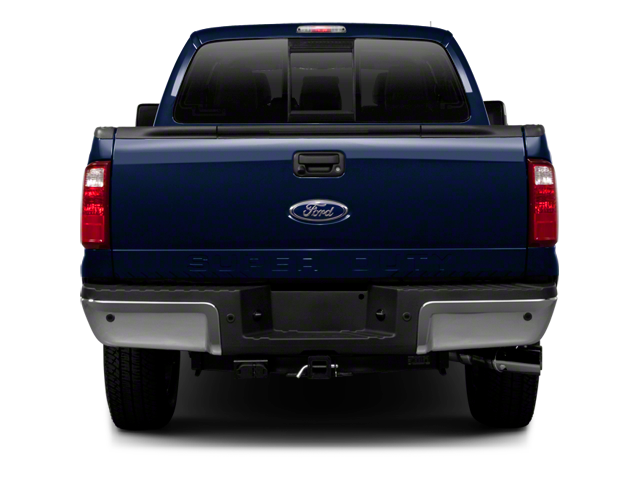

• Accent color rear bumper w/step pad
• Front fender vents
• Accent color box top & tailgate moldings
• Accent color bodyside moldings
• Accent color wheel lip moldings
• Painted 6" angular lighted running boards

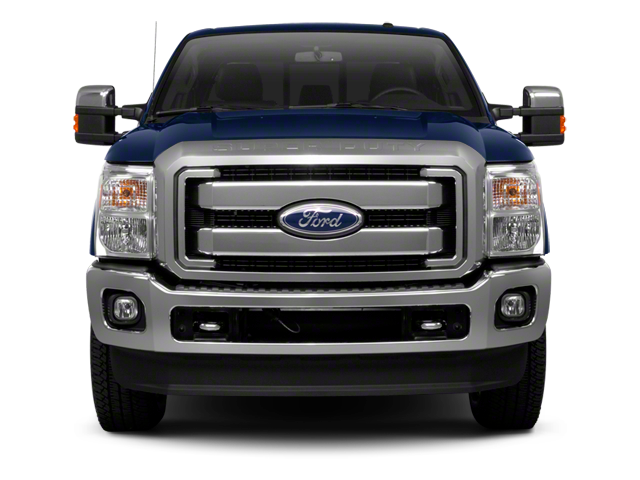

• Body-color grille w/chrome insert
• Autolamp/rainlamp dual beam halogen headlamps
• Fog lamps
• Pickup box/cargo lights
• Underhood service light
• PowerScope pwr telescoping & folding heated trailer tow mirrors -inc: turn signals, integrated clearance lights, heated convex spotter mirror, memory
• Body-color mirror caps
• Solar tinted glass
• Rear privacy glass
• Pwr sliding rear window
• Interval windshield wipers
• Front/rear license plate brackets
• Body-color door handles
• Removable locking tailgate w/black handle & TailGate Assist
• King Ranch fender badges

• Premium AM/FM stereo w/CD/MP3 player -inc: clock, (8) speakers, subwoofer, aux audio input jack
• SIRIUS satellite radio
• SYNC voice activated communications & entertainment system -inc: Bluetooth® capability, steering wheel audio controls, USB port, audio input jack, 911 Assist, vehicle health reports, turn-by-turn navigation, real-time traffic

• Dual zone electronic automatic temperature control (DEATC)

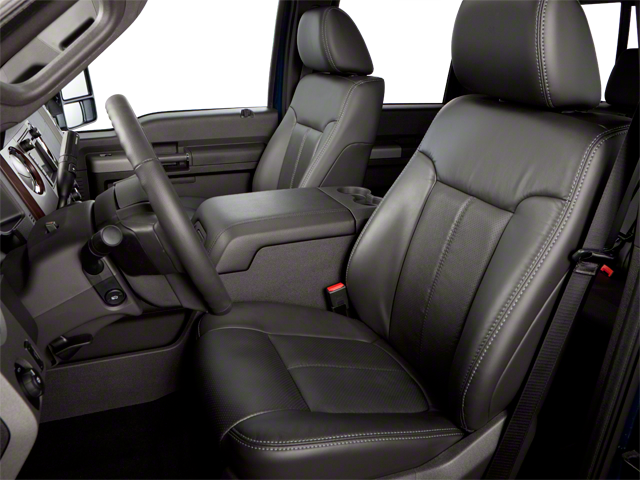

• Unique King Ranch Chaparral leather 40/console/40 front seats -inc: 10-way pwr heated/cooled driver & passenger seats w/memory, (2) aux pwr outlets in console, easy entry/exit memory feature

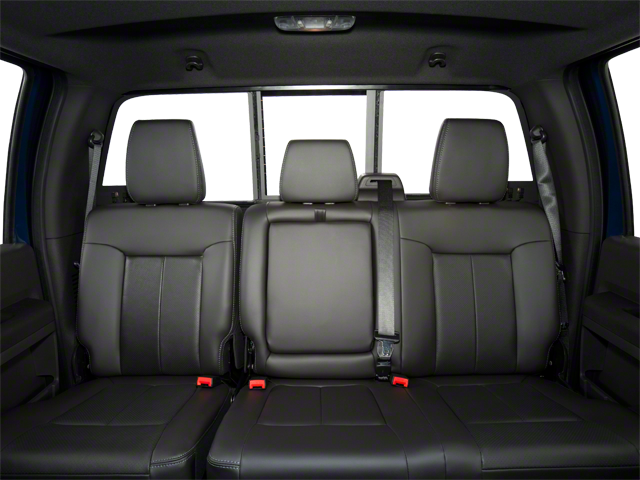

• 60/40 flip-up/fold-down rear split bench seat -inc: dual cupholders in armrest, underseat partitioned lockable storage w/aux pwr outlet, (3) head restraints
• Rear armrests w/cupholders
• Color-keyed carpet full-floor covering
• Unique front/rear floor mats w/King Ranch logo
• Color-keyed scuff plates

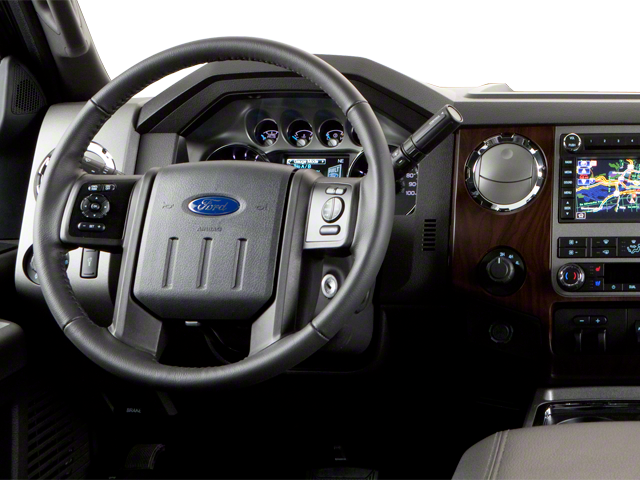

• Tilt/telescoping steering column

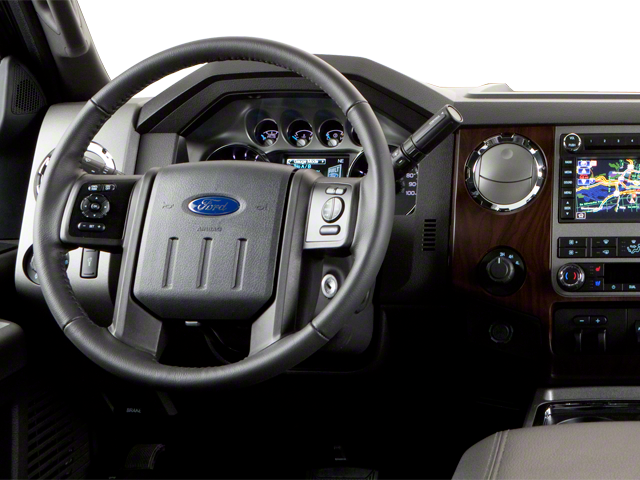

• Unique King Ranch Chaparral leather-wrapped steering wheel w/SYNC controls
• LCD productivity screen -inc: driver configurable enhanced information 4.2" display, menus for gauge setup, trip computer, fuel economy, towing/off-road applications, (5) button message control on steering wheel
• Oil minder system
• Pwr windows w/driver one-touch-down & backlit switches
• Accessory delay
• Pwr door locks w/backlit switches, autolock & auto unlock, SecuriCode keyless entry keypad
• Pwr adjustable pedals w/memory
• Remote keyless entry & perimeter anti-theft alarm
• Remote start system
• SecuriLock anti-theft ignition
• Cruise control
• 3-blink lane change signal
• Universal garage door opener
• (4) air registers w/positive shut-off
• (2) aux pwr outlets in instrument panel
• 110V/150W inverter aux pwr outlet in rear console
• Dash-top tray
• Glove box
• Secondary glove box
• Instrument panel mounted storage bin & trash bag hook
• Instrument panel mounted dual cupholders
• Color-keyed door trim panel -inc: soft armrest, grab handle, reflector, maple woodgrain upper applique, upper & lower map pockets, King Ranch Chaparral leather inserts
• Electrochromic rearview mirror w/compass
• Overhead console -inc: storage bins for garage door opener & sunglasses
• Color-keyed cloth headliner -inc: integrated SYNC microphone
• Front passenger-side roof ride handle
• Rear seating roof ride handles
• Driver & front passenger grab handles
• Dual color-keyed vinyl sunvisors-inc: driver-side map strap, dual covered lighted mirrors
• Front door operated dome lamp w/time delay off & IP switch
• Front/rear map lamps
• Dual color-keyed coat hooks

• 4-wheel anti-lock braking system (ABS)
• AdvanceTrac w/roll stability control (RSC)
• Hill start assist control
• Trailer sway control
• Driver & front passenger airbags
• Driver & front passenger side air bag/curtain
• Reverse vehicle aid sensor
• Rear view camera -inc: electrochromic rear view mirror w/video
• SOS post crash alert system
• Color-keyed safety belts w/front seat outboard height adjustable D-rings
• BeltMinder seatbelt-not-buckled chime & flashing warning light
• Rear door child safety locks
• Child seat tethers on all rear passenger seats
• Tire pressure monitoring system

FX4 OFF ROAD PKG

• hill descent control
• transfer case & fuel tank skid plates
• unique "FX4 Off Road" decal
• Rancho branded colored front/rear shocks

KING RANCH

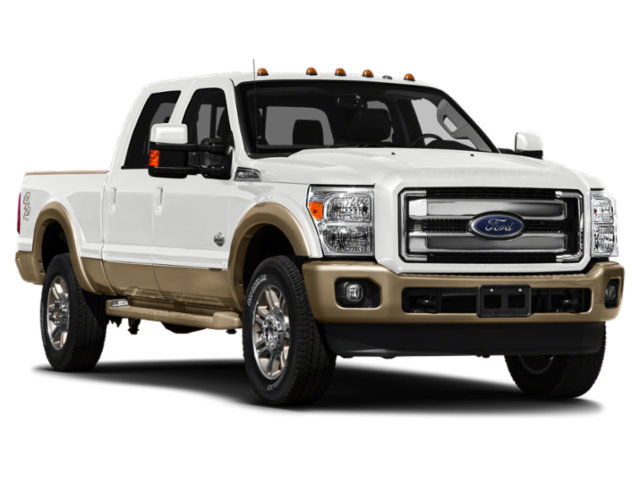

• Pale Adobe lower accent two-tone paint
• accent color wheel lip molding
• accent color box top & tailgate molding
• body-color grille w/chrome insert
• accent color front bumper
• accent color rear bumper w/step pad
• accent color lower bodyside moldings
• King Ranch fender badges
• painted 6" angular lighted running boards
• body-color mirror caps
• PowerScope mirrors w/memory
• King Ranch center cap on wheels
• front/rear floor mats w/King Ranch logo
• unique King Ranch Chaparral leather-wrapped steering wheel w/SYNC controls
• Chaparral Brown leather heated/cooled pwr front seats w/driver memory
• King Ranch Chaparral leather door trim inserts w/woodgrain applique
• pwr adjustable pedals w/memory
• rear view camera
• universal garage door opener
• remote start system

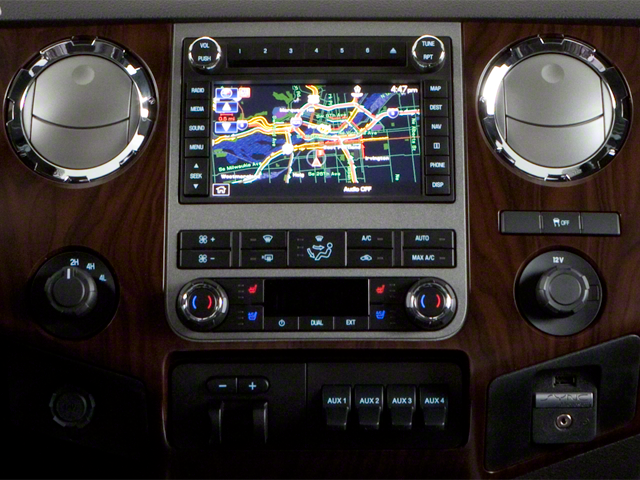

NAVIGATION SYSTEM W/HD RADIO

• AM/FM stereo w/CD/MP3 player
• USB port
• in-dash touch screen
• voice-activated controls
• SIRIUS Travel Link capability
• digital clock
• (8) speakers
• subwoofer

(4) LT275/65R20E ALL-TERRAIN OWL TIRES

• LT275/70R18E all-terrain BSW spare

PWR SLIDING MOONROOF

• map lights & switches

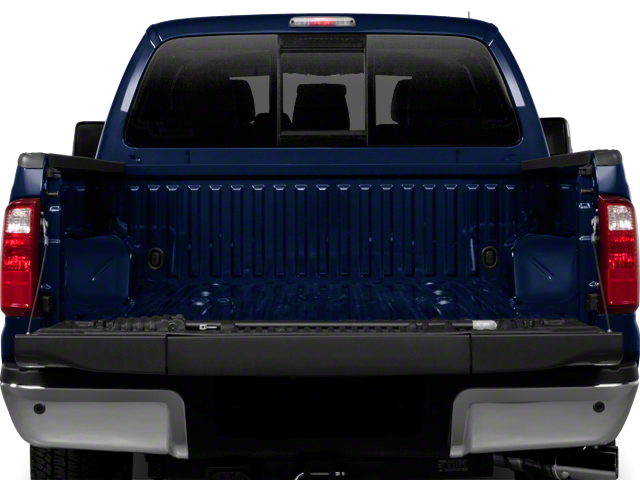

TOUGH BED SPRAY-IN BEDLINER

• tailgate guard
• black bed attachment bolts
• black tie-down hooks

TAILGATE STEP

• TailGate Assist
• step & handle

(4) UPFITTER SWITCHES

• switches located on instrument panel

SKID PLATE PKG

• transfer case & fuel tank

• FX4 Off-Road Package: Transfer Case and Fuel Tank Skid Plates; Hill Descent Control; Colored Front and Rear Rancho Branded Shocks
• King Ranch Package: King Ranch Chaparral Leather-Wrapped Steering Wheel; PowerScope Trailer-Tow Mirrors; Accent Color Lower Bodyside Moldings; Universal Garage Door Opener; Accent Color Front Bumper; Body Color Mirror Caps on PowerScope Mirrors; 6" Angular Lighted Painted Running Boards; Memory Power Adjustable Pedals; Unique King Ranch Leather 40/console/40 Front Seats; Remote Start System; Rear-View Camera; Accent Color Rear Bumper with Step Pad; Painted Body Color Grille with Chrome Insert; Unique Door Trim Panels
• Order Code 608A: 10
• 000 Lb Payload Package GVWR
• Navigation System Radio with HD and Satellite
• LT275/65Rx20E OWL A/T (4) Tires
• Power Moonroof
• White Platinum Met TC
• White Platinum Met TC
• ToughBed Spray-In Bedliner
• Electronic Locking with 3.55 Axle Ratio
• Tailgate Step and Handle with Tailgate Assist
• Stowable Bed Extender
• Upfitter Switches (4)
• Transfer Case and Fuel Tank Skid Plates
• Rear mounted camera
• Brake assist system
• Selective service internet access
• Cruise control with steering wheel mounted controls
• Ventilated driver and front passenger seats
• Integrated navigation system with voice activation
• PowerCode keyfob remote start
• Heated driver and front passenger seats
• Leather front seat upholstery
• First-row sliding and tilting glass sunroof with xxxxxx activation sunshade
• Driver seat power reclining
• lumbar support
• cushion tilt
• fore/aft control and height adjustable control
• Part-time 4WD
• MyKey restricted driving mode/alerts
• SecuriCode external keypad door lock control
• Mechanical
• Bluetooth® wireless audio streaming
• Dual-zone front climate control
• SecuriLock immobilizer
• SIRIUS Travel Link real-time traffic
• Bluetooth® handsfree wireless device connectivity
• Trailer brake controller
• Trailer sway control
• SYNC external memory control
• PowerScope power extendable trailer mirrors
• AdvanceTrac w/Roll Stability Control electronic stability control system with anti-roll
• Hill descent control
• Hill start assist
• Leather rear seat upholstery
• Automatic climate control
• Rear parking sensors
• 0.150 kW
• Front fog lights
• Leather steering wheel
• Integrated tailgate step
• DVD-audio playback capability
• Manual rear child safety door locks
• Illuminated side steps
• Heated driver and passenger side door mirrors
• Power folding door mirrors
• Manual tilting steering wheel
• Manual telescopic steering wheel
• Xxxxxx wheel covers
• Power adjustable pedals
• Upfitter switches
• 6 airbags
• Driver front impact airbag
• Seat mounted side impact driver airbag
• Safety Canopy System curtain first and second-row overhead airbags
• Passenger front impact airbag
• Seat mounted side impact front passenger airbag

• Electrical
• Cold Cranking Amps @ 0° F (Primary): 650
• Maximum Alternator Capacity (amps): 157
• Maximum Alternator Watts: 2100
• Cooling System
• Total Cooling System Capacity (qts): 21.0
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 4800
• Gross Axle Wt Rating - Rear (lbs): 6100
• Curb Weight - Front (lbs): 3951
• Curb Weight - Rear (lbs): 2882
• Gross Vehicle Weight Rating Cap (lbs): 10000
• Gross Combined Wt Rating (lbs): 19000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 12000
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1800
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 12000
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 3000
• Suspension
• Suspension Type - Front: Coil
• Suspension Type - Rear: 2-Stage Leaf
• Spring Capacity - Front (lbs): 4800
• Spring Capacity - Rear (lbs): 6100
• Axle Type - Front: Dana Super 60 Monobeam
• Axle Type - Rear: Full-Floating
• Axle Capacity - Front (lbs): 6000
• Axle Capacity - Rear (lbs): 6200
• Axle Ratio (:1) - Front: 3.55
• Axle Ratio (:1) - Front: 3.73
• Axle Ratio (:1) - Rear: 3.55
• Axle Ratio (:1) - Rear: 3.73
• Shock Absorber Diameter - Front (mm): 35
• Shock Absorber Diameter - Rear (mm): 35
• Stabilizer Bar Diameter - Front (in): 1.10
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.7 x 0.5
• Rear Brake Rotor Diam x Thickness (in): 13.4 x 0.3
• Tires
• Front Tire Order Code: TCW
• Front Tire Order Code: TCH
• Rear Tire Order Code: TCW
• Rear Tire Order Code: TCH
• Spare Tire Order Code: TCW
• Spare Tire Order Code: TCH
• Front Tire Size: LT275/65R20E
• Front Tire Size: LT275/65R18E
• Rear Tire Size: LT275/65R20E
• Rear Tire Size: LT275/65R18E
• Spare Tire Size: LT275/70R18E
• Spare Tire Size: LT275/65R18E
• Front Tire Capacity (lbs): 3750
• Front Tire Capacity (lbs): 3415
• Rear Tire Capacity (lbs): 3750
• Rear Tire Capacity (lbs): 3415
• Spare Tire Capacity (lbs): 3640
• Spare Tire Capacity (lbs): 3415
• Revolutions/Mile @ 45 mph - Front: 605
• Revolutions/Mile @ 45 mph - Front: 652
• Revolutions/Mile @ 45 mph - Rear: 605
• Revolutions/Mile @ 45 mph - Rear: 652
• Revolutions/Mile @ 45 mph - Spare: 629
• Revolutions/Mile @ 45 mph - Spare: 652
• Wheels
• Front Wheel Size (in): 18 x 8.0
• Rear Wheel Size (in): 18 x 8.0
• Spare Wheel Size (in): 18 x 8.0
• Front Wheel Material: Aluminum
• Rear Wheel Material: Aluminum
• Spare Wheel Material: - TBD -
• Steering
• Steering Type: Pwr Rack & Pinion
• Steering Ratio (:1), On Center: 20.4
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 51.8
• Turning Diameter - Wall to Wall (ft): 53.7
• Frame
• Frame Type: Ladder
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 35
• Fuel Tank Location: Midship
• Exterior Dimensions
• Wheelbase (in): 156.2
• Length, Overall w/o rear bumper (in): 246.8
• Width, Max w/o mirrors (in): 79.9
• Height, Overall (in): 79.7
• Overhang, Front (in): 38.1
• Overhang, Rear w/o bumper (in): 52.4
• Front Bumper to Back of Cab (in): 154.2
• Cab to Axle (in): 39.9
• Cab to End of Frame (in): 80.4
• Ground to Top of Load Floor (in): 35.1
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): 37.6
• Ground Clearance, Front (in): - TBD -
• Ground Clearance, Rear (in): 8.1
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 81.8
• Cargo Box Width @ Top, Rear (in): 63.5
• Cargo Box Width @ Floor (in): 69.3
• Cargo Box Width @ Wheelhousings (in): 50.9
• Cargo Box (Area) Height (in): 20.0
• Tailgate Width (in): 60.6
• Cargo Volume (ft³): 64.1
• Interior Dimensions
• Passenger Capacity: 5
• Front Head Room (in): - TBD -
• Front Head Room (in): 40.7
• Front Leg Room (in): 41.1
• Front Shoulder Room (in): 68.0
• Front Hip Room (in): 67.6
• Second Head Room (in): 40.8
• Second Leg Room (in): 42.1
• Second Shoulder Room (in): 68.0
• Second Hip Room (in): 67.6
• Summary
• Vehicle Name: Ford Super Duty F-250 SRW
• Body Style: Crew Cab 6-3/4'
• Body Code: 156" WB
• Emissions
• Tons/yr of CO2 Emissions @ 15K mi/year: - TBD -
